Cables and distribution boxes
Power right to the workplace
A generator is the beginning. With our cables and distribution boxes the power gets exactly where the work happens: on every floor, at every stall, on every stage. All in one rental package, delivered complete on site.
How it works
From generator to every socket
From the generator the power enters the site or building through a main distributor. End distributors then bring it right to the workplace, with exactly the outlets you need.

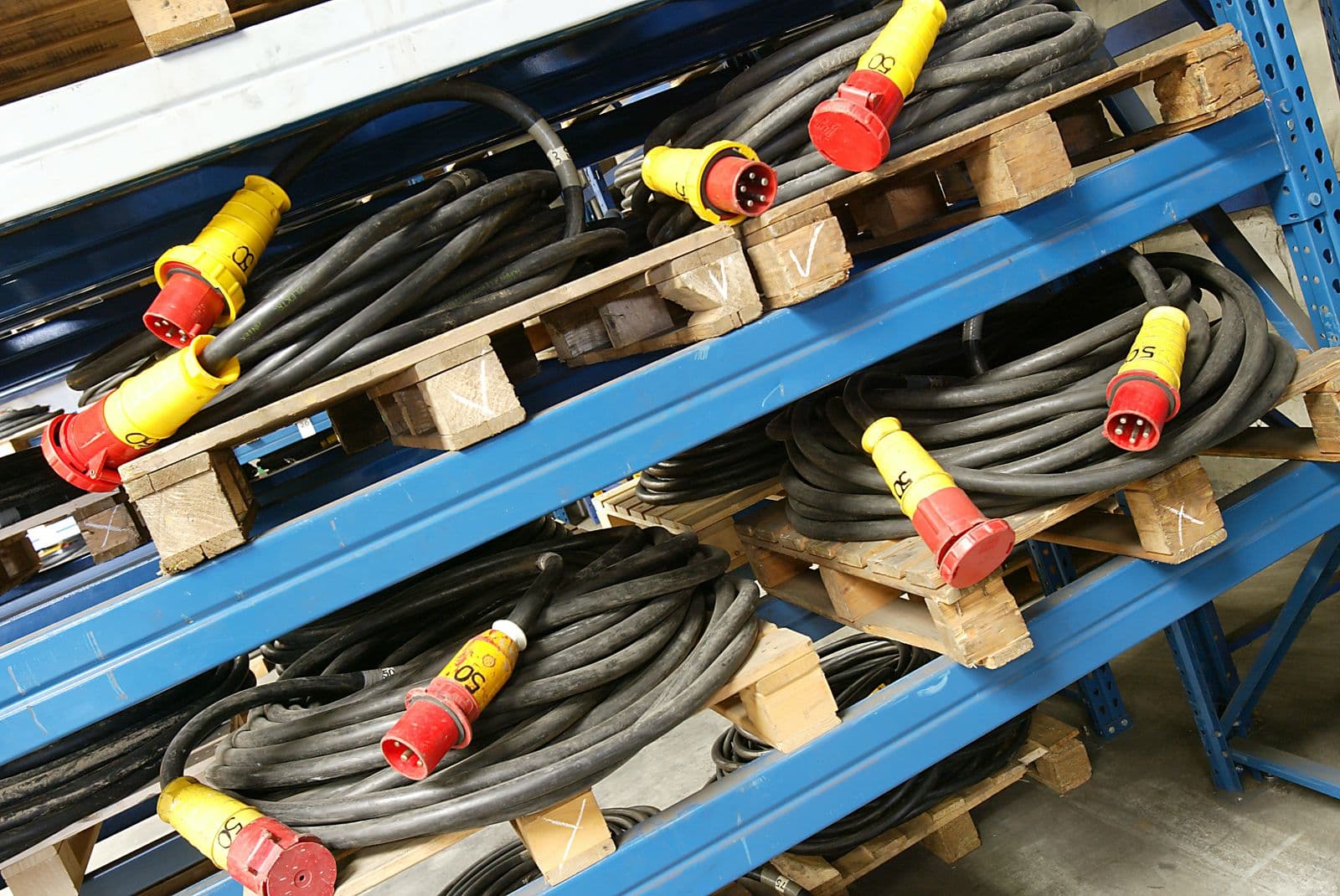

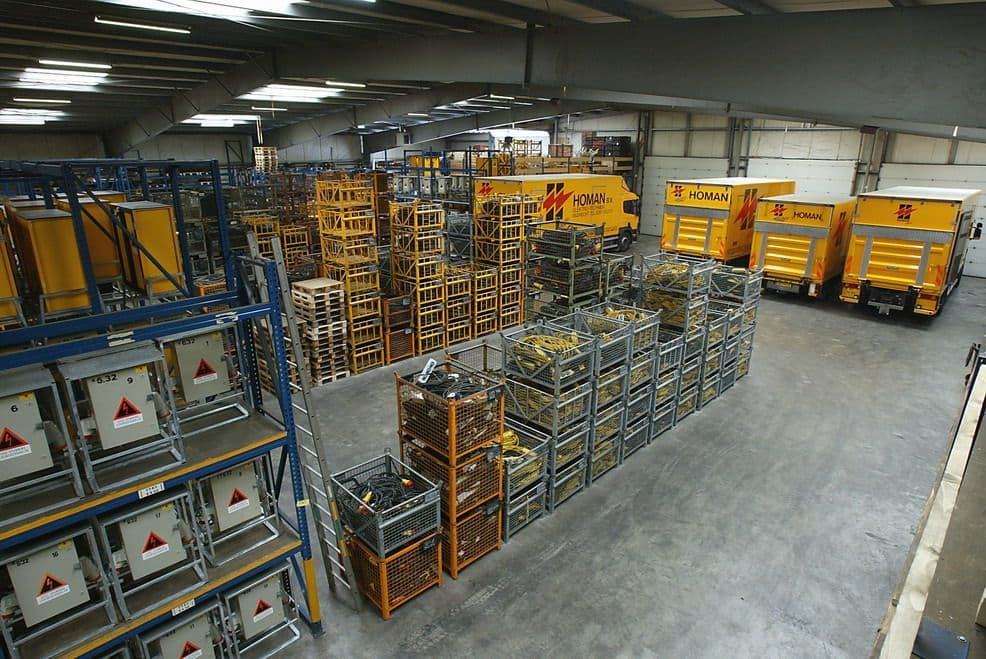

Our warehouse is full of cables in all common lengths and sizes, from handy 32 A cables to heavy feeder cables for main distributors. Everything coiled, numbered and ready for transport.
When preparing the quote we think along about the distribution plan: which power needs to go where, which boxes fit and how many metres of cable are really needed. That way you do not pay too much and never run short on site.
In practice
Where you will find them

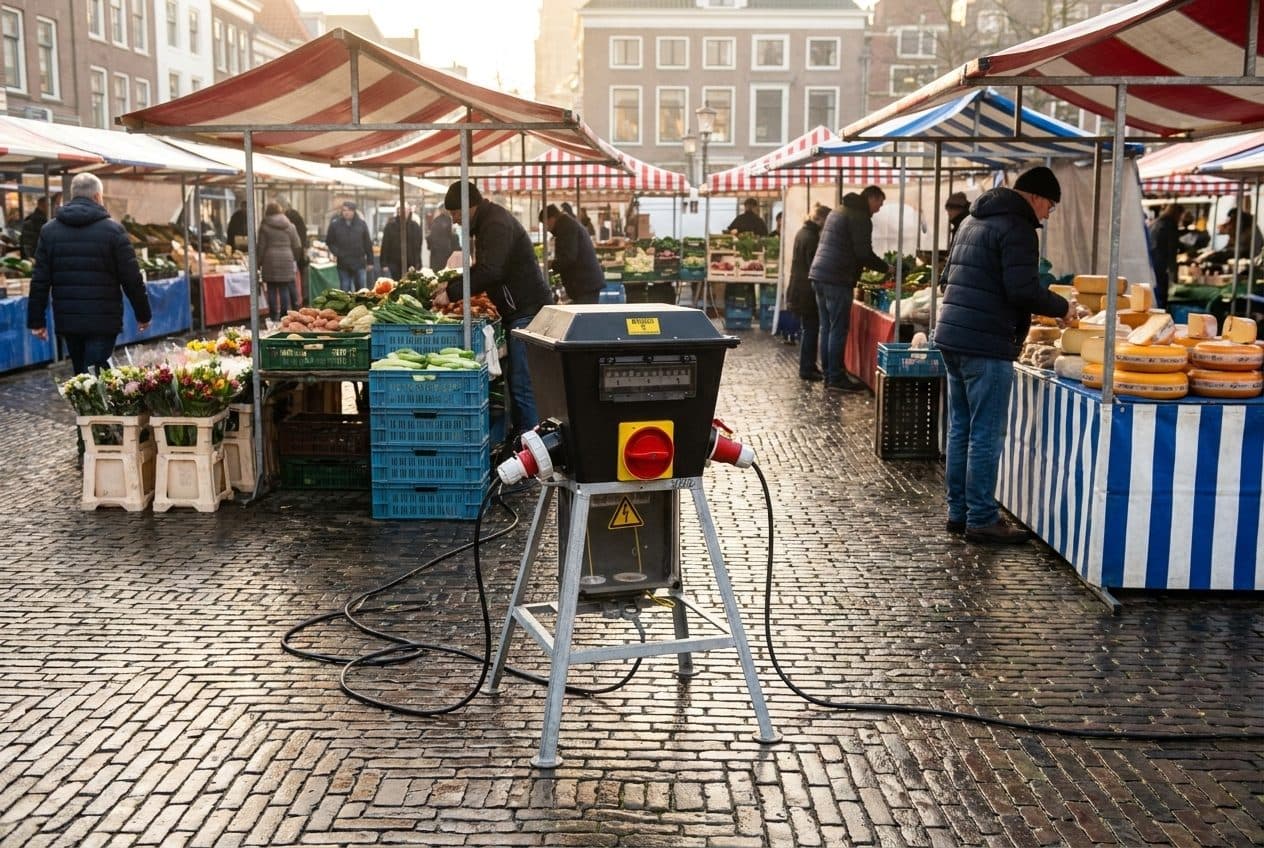

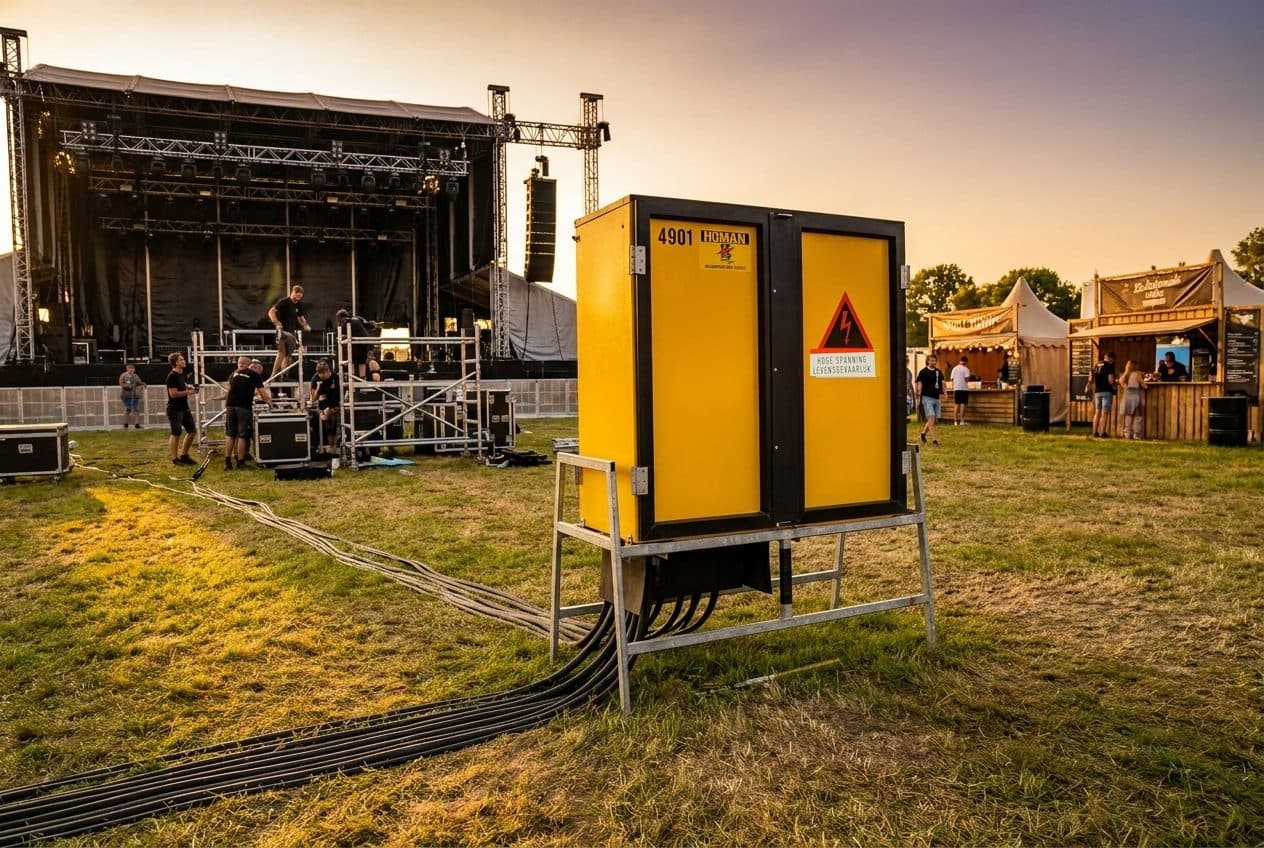

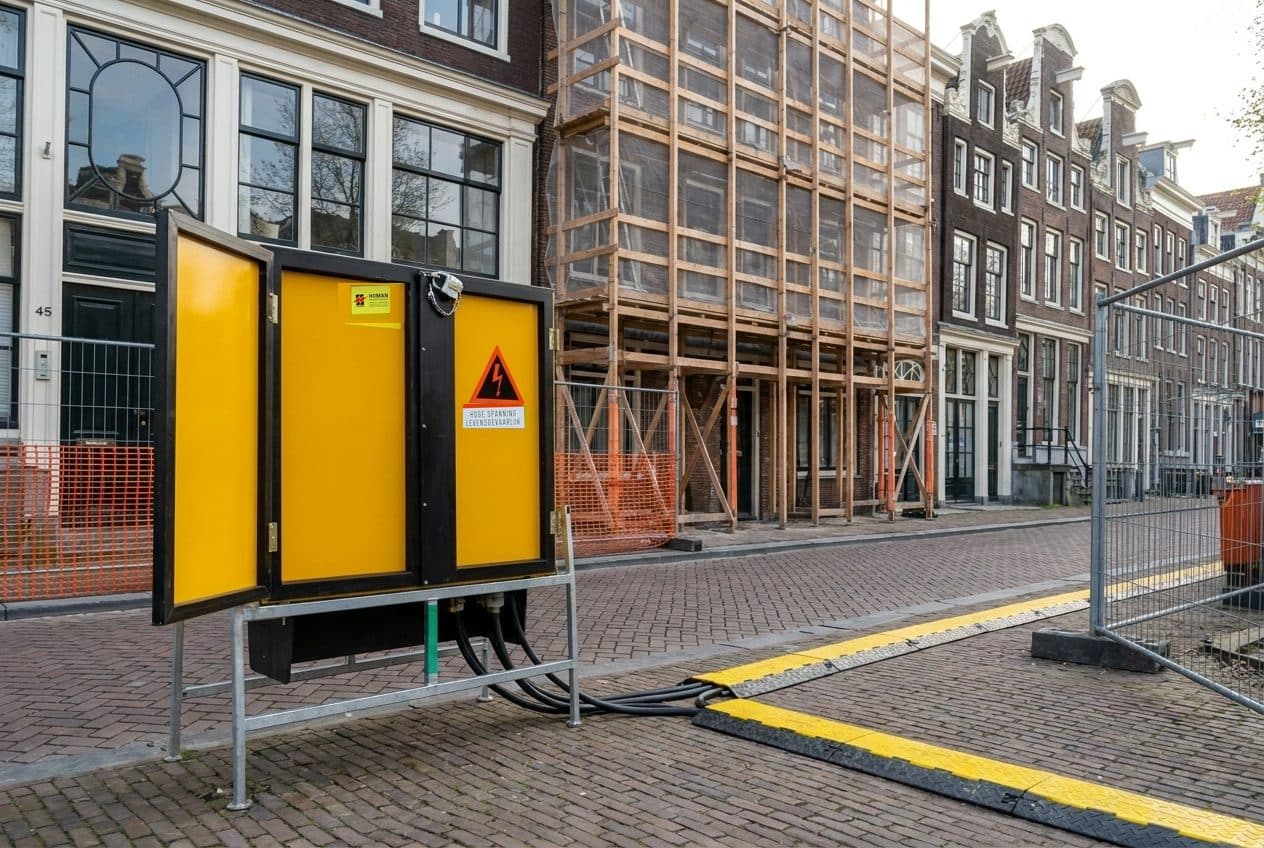

On the festival site, between the market stalls or in the street during a renovation: anywhere temporary power needs to be distributed.
Our distribution boxes
From main distributor to workplace
These are the boxes we have for hire: from the main distributor directly after the generator to the end distributors with three-phase and 230V at the workplace.

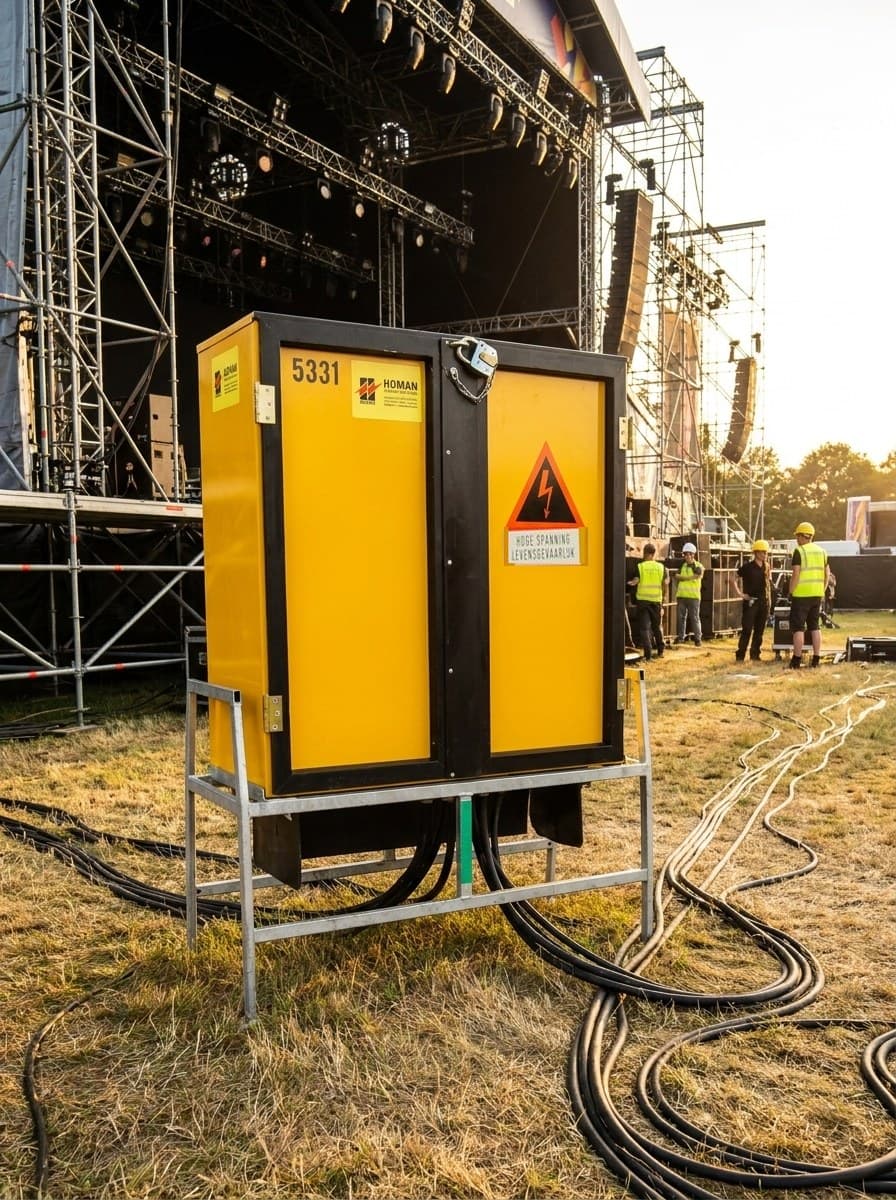

3-way box 500 A
500 A · 1250 × 950 × 500 mm · 90 kg
Main distributor for medium-sized projects and event grounds: the first station after the generator.
- 1x 500 A incoming with main switch
- 2x 315 A outgoing with switch
- 1x socket outlet 63 A 5-pole
- 3x outgoing feeder with kWh meter
- Earth leakage protection 63 A / 300 mA

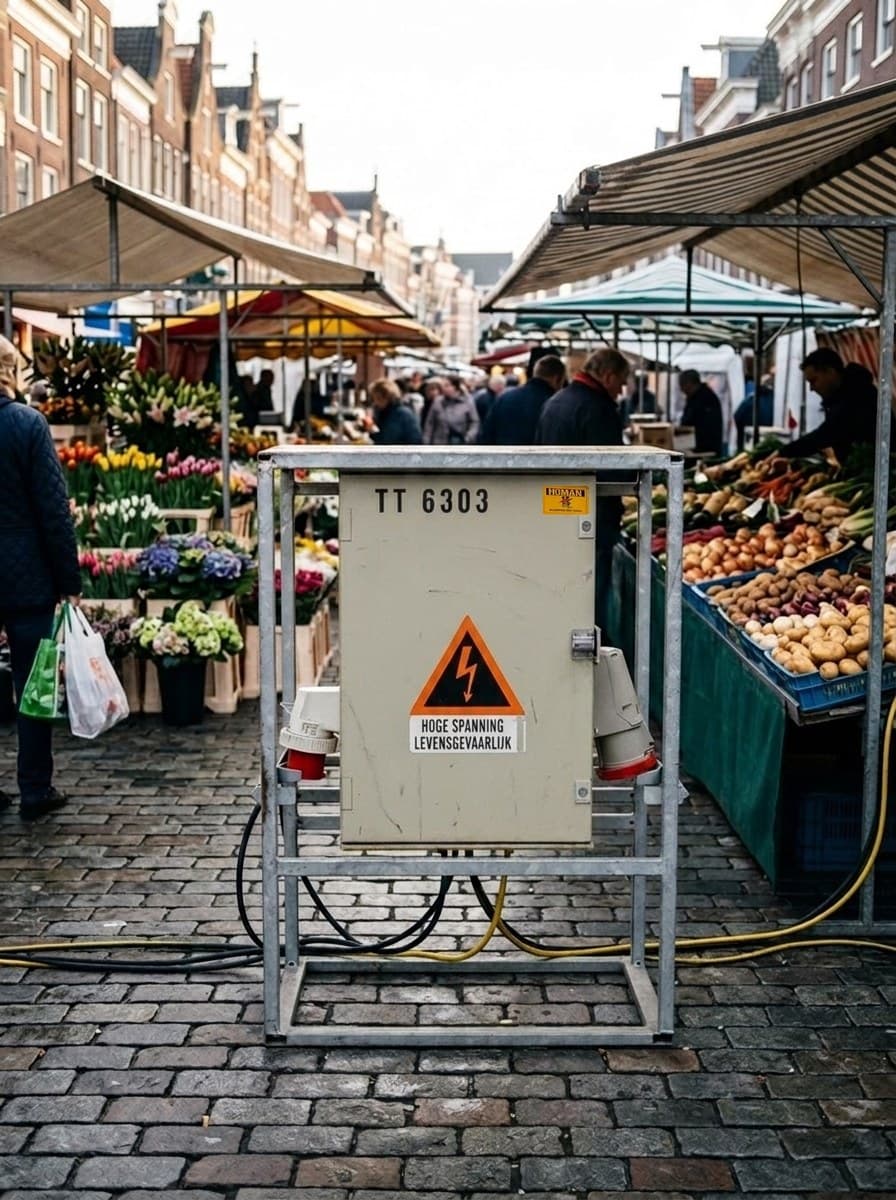

T63N
50 A · 600 × 500 × 270 mm · 25 kg
Handy end distributor, quickly placed wherever power is needed: at the market, on the terrace or at the workplace.
- 1x 50 A incoming (63 A 5-pole) with main switch
- 1x socket outlet 32 A 5-pole
- 9x socket outlet 16 A Schuko
- Every circuit protected by a 30 mA RCBO

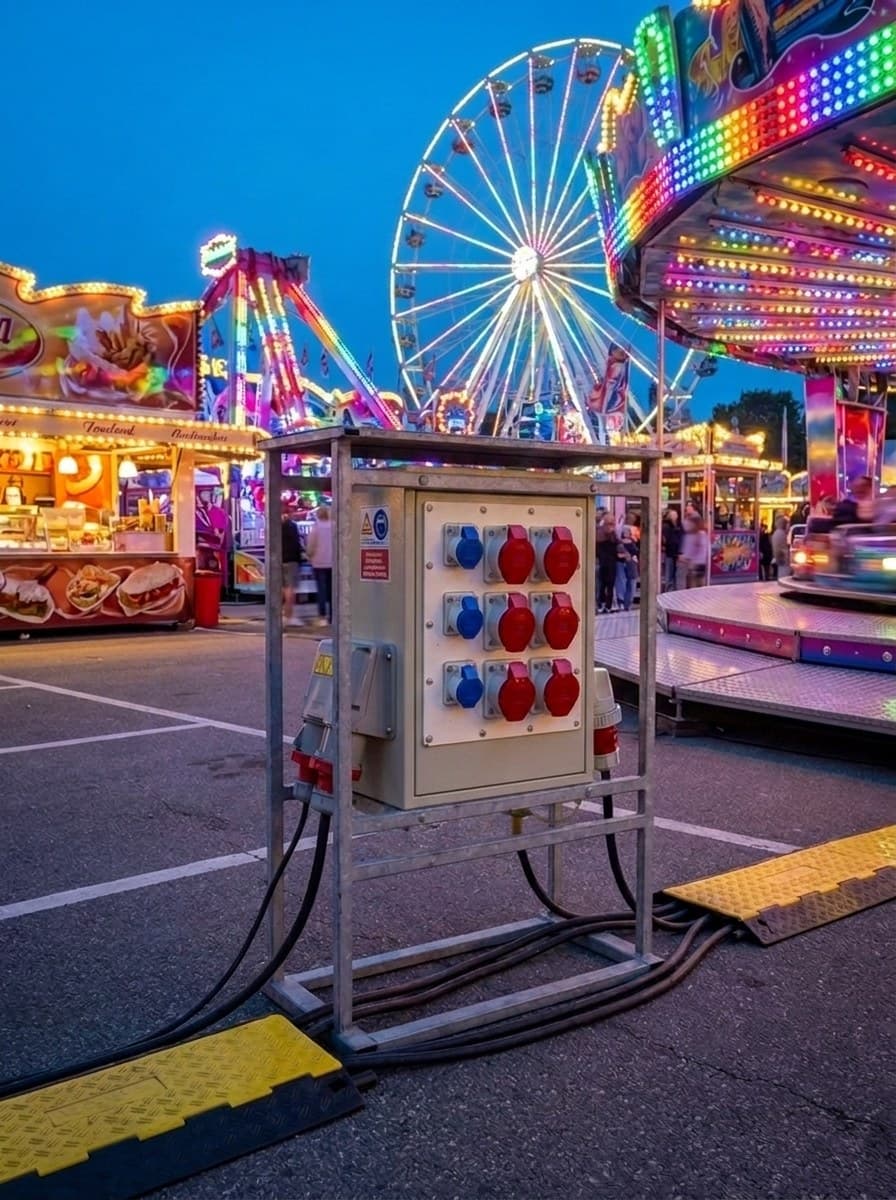

TT32P
63 A · 1050 × 750 × 450 mm · 60 kg
Three-phase 32 A outlets from a single point, ideal for funfair rides and workplaces.
- 1x 63 A incoming (5-pole)
- 6x socket outlet 32 A 5-pole
- 3x socket outlet 16 A CEE
- 63 A pass-through and surge protection

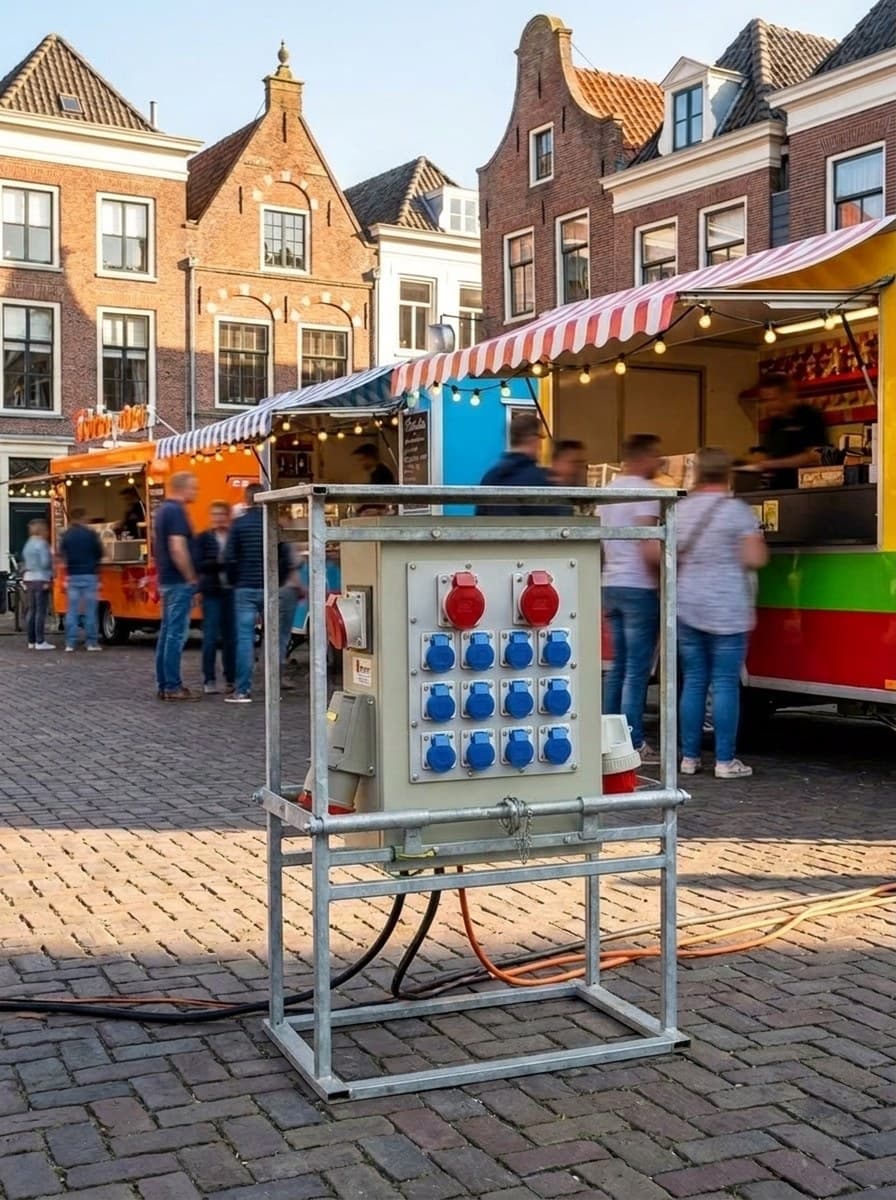

WW63 CEE
63 A
Socket outlets and CEE connections for mixed use, for example at a food court or on an event site.

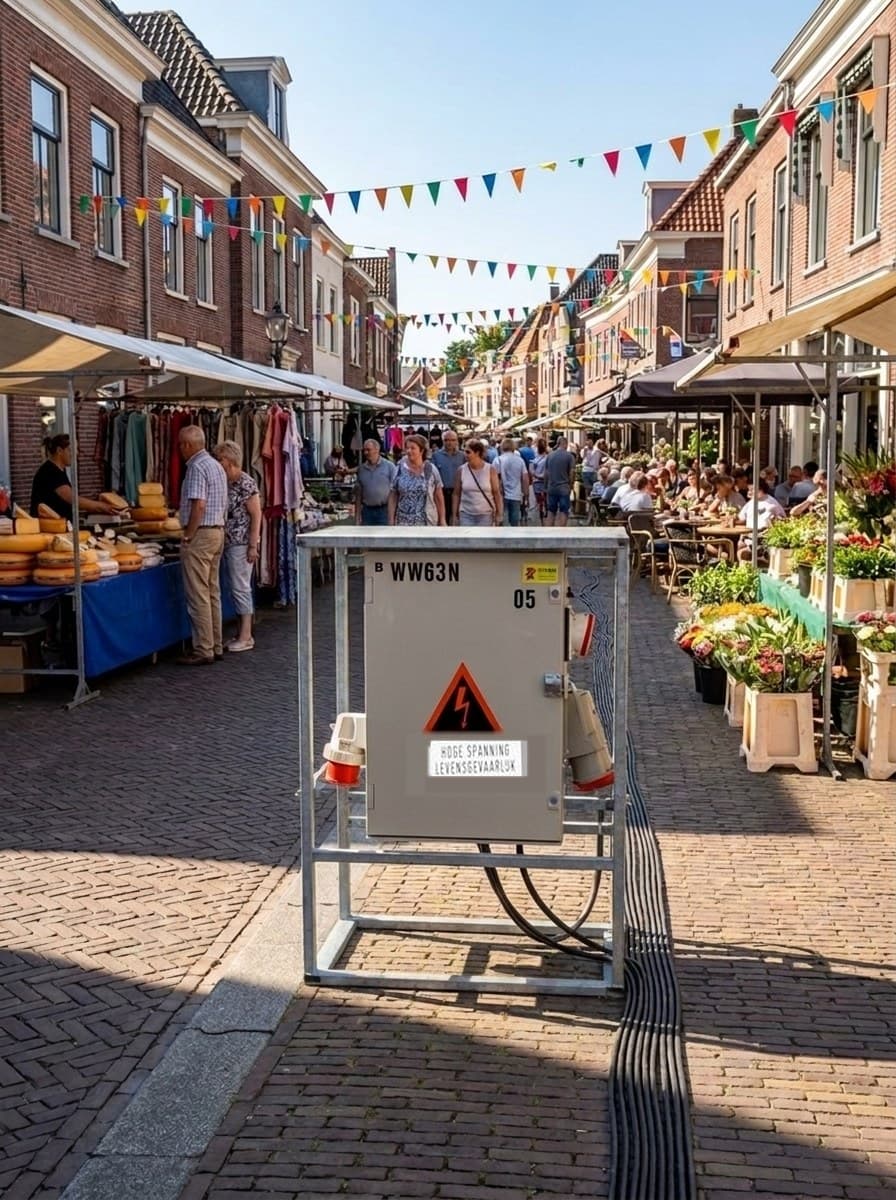

WW63N Schuko
63 A · 1050 × 750 × 450 mm · 60 kg
End distributor with a generous number of socket outlets, the workhorse of street markets and street parties.
- 1x 63 A incoming (5-pole)
- 4x socket outlet 32 A 5-pole
- 12x socket outlet 16 A Schuko
- 63 A pass-through and surge protection
Every box carries its own Homan number, so on site it is always clear what is standing there. Not sure which distribution your project needs? Call us and we will draw up the distribution plan together.
Need a complete package?
Generator, cables and distribution boxes in one quote. Delivered, installed and collected again afterwards.
